1. Principles:
It uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle.
Under certain pressure, zeolitemolecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more nitrogen adsorption capacity than oxygen adsorption capacity. PLC controls pneumatic valve open/close to realize two adsorption towers' alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation and produces oxygen with desired purity.

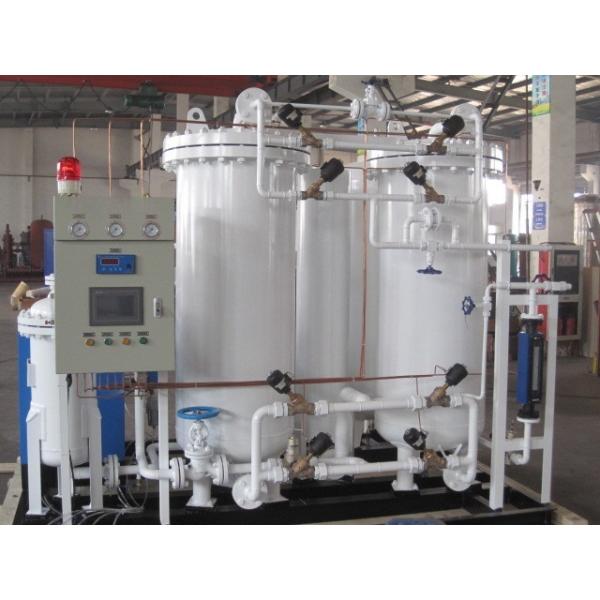

2. Principle of operation of Industrial PSA Oxygen Generator
After air purification system to remove water.oil and solid dust, the compressed air go through
absorption tower which is equipped with zeolites molecular sieve. N2,CO2, water vapor etc are
adsorpt by the zeolites molecular sieve.
We get high quality O2.
When reduce pressure,the zeolites molecular sieve can be desorption.Based on this principle, the zeolites
molecular sieve can be used repetition.
3.Technical characteristics of Industrial PSA Oxygen Generator
- Labyrinth air-flow diffusion equipment(National Invention Patent)
- Air-distribution uniformity, upgrade molecular sieve utilization ratio.
- Unique noise-abatement equipment(National Patent)
- Blameless process design,perfect usage effective.unique molecular sieve protection,extend carbon
- molecular sieve's life.
- Intelligent interlocking unqualified N2 Emptying equipment, N2 quality guarantee
- Optional: N2 capacity system, purity automatic regulating system, Remote Control System etc
- Easy to operate
- Running steadily
- High automation
4.Technical data of Industrial PSA Oxygen Generator
- O2 output: 5~200Nm3/h
- O2 Purity: 90~95%
- O2 Pressure: 0.1~0.7Mpa
- Dew point: -40ºC or -60ºC
5.Technical Parameters of Industrial PSA Oxygen Generator
| Item No. |
N2 Output
(Nm³/h) |
Effective Air Consumption
(Nm³/min) |
Air Purification System |
O2 Purity: |
| PO-5 |
5 |
1 |
PA-1 |
90~95% |
| PO-10 |
10 |
2 |
PA-3 |
| PO-20 |
20 |
4 |
PA-6 |
| PO-40 |
40 |
8 |
PA-10 |
| PO-60 |
60 |
12 |
PA-12 |
| PO-80 |
80 |
16 |
PA-20 |
| PO-100 |
100 |
20 |
PA-20 |
| PO-150 |
150 |
30 |
PA-30 |
| PO-200 |
200 |
40 |
PA-40 |
